Minelab SDC 2300

$4,999.00
Sold Out


Calculate Shipping


The SDC 2300 is a compact high performance mid-range gold detector perfect for chasing down elusive sub-gram nuggets on land & underwater.


MPF TECHNOLOGY

MPF (Multi Period Fast) technology incorporates extremely fast Pulse Induction switching between Transmit (Tx) and Receive (Rx) detector signals. Therefore minimal residual transmit signal is present during the receive cycle, enabling clear sharp detection of very small gold.

QUALITY DESIGN

The SDC 2300’s mechanical platform has been designed and tested to military standards. Our R&D experts have selected high quality materials and ensured the product is easy to maneuver and operate.

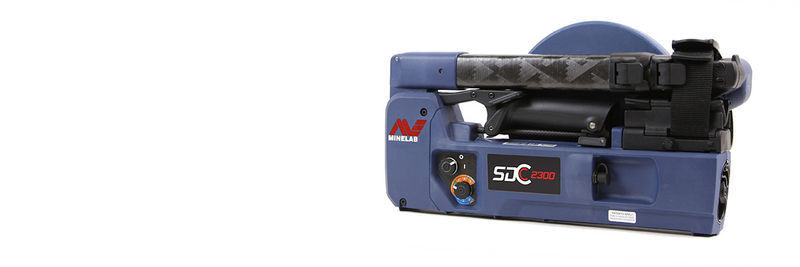

COMPACT

Folds to small portable size, 8.5” (216mm) by 15.7” (400mm).  Fits into carry-on luggage and most backpacks.

WATERPROOF CAPABILITY

Fully submersible to 10’ (3m) for detecting riverbeds and shorelines, allowing you to transition with ease from land to water.

RUGGED & ASSEMBLY FREE

Military grade construction, one piece detector designed to perform in the toughest conditions. No assembly required.

EASY PATCH HUNTING

Search quickly and efficiently in hard to reach and remote places to find those elusive gold bearing clustered deposits.

MORE SENSITIVE

The SDC 2300 is very sensitive to small gold scattered in heavily mineralised ground. This gold is often missed by prospectors with both VLF and PI detectors because of the difficult ground conditions and fine gold size. You can now detect the small gold missed in previously searched areas. These small gold finds can lead the way to new patches and bigger gold deposits

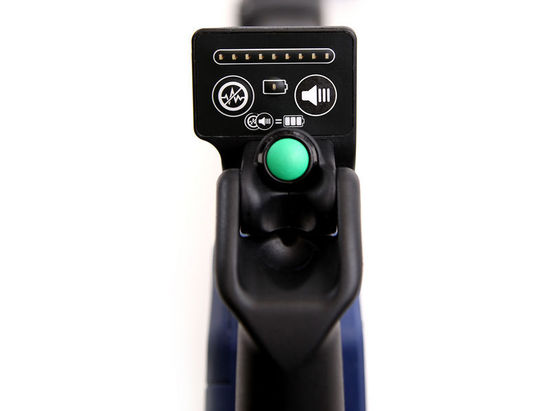

VISUAL & AUDIO TARGET RESPONSE

The SDC 2300 gold detector includes LED visual indicators and audio tones to identify target size and proximity. The detector will produce a quiet/low tone to indicate a small or deep target, or will produce a loud/high tone to indicate large or shallow target..

SDC 2300 TECH SPECS

Application
Gold Prospecting (waterproof 10ft)
Coil (standard)
8" Round Monoloop
Audio Output
Built-in speaker, Minelab headphones (supplied), Koss Waterproof Headphones (not supplied), Pro Sonic Wireless Audio (not supplied)
Visual Display
9 LEDs indicate detection, battery status and threshold level; 1 low battery warning LED
Length
Extended: 1500 mm (59.1") Collapsed: 400 mm (15.7”)
Weight
2.3 kg (5.1 lbs)
Batteries
Li-on Battery Pack with Charger, 4 x C-cell 1.2 V 5000 mAh Rechargeable (not supplied), 4 X C-cell 1.5 V Alkaline (not supplied)
Detect Modes
Normal (1-5 Sensitivity range) & Salt (1-3 Sensitivity range)
Noise Cancel
Manually Initiated, Automatic Scanning
Ground Balance
Automatic Ground Tracking (AGT) Fast Ground Balance
Threshold
9 audio levels
Audio Pitch
Low, High
Transmission & Technology
Pulse Induction (PI) and Multi Period Fast (MPF)
Warranty
3 years control box & coil
Included Accessories
Armrest Cover, Coil Joint Protector

.





(3230-0003)

SKU 3230-0003
Brand Minelab
Shipping Weight 4.6000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.400m
Shipping Cubic 0.024000000m3
